PCB

Revision 1

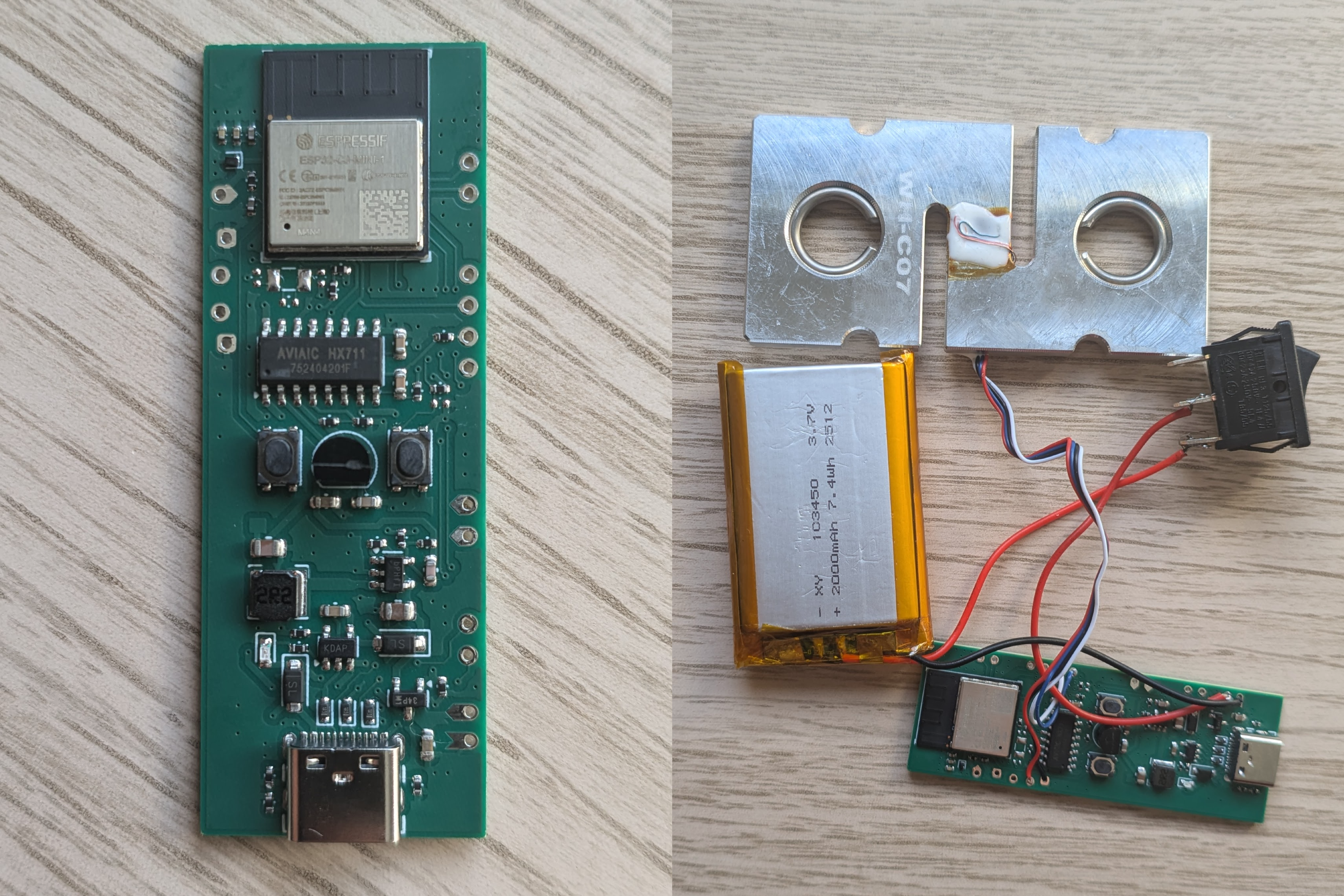

The PCB design is maintained in the crimpdeq-hardware repository and was created with KiCad.

It is a two-layer board derived from the ESP32-C3-DevKit-RUST-1. This version removes unused sensors from the original design and keeps only what this project needs.

PCB

The PCB was sponsored by PCBWay. Working with them was fast and easy, and the resulting boards are high quality.

PCBWay

Revision 1 has been tested and works as expected, but there is still room for improvement. See the Revision 2 issue.

Revision 2

The crimpdeq-board repository contains an advanced version (Revision 2) of the PCB that includes additional sensors and other improvements.

⚠️ Status: This version is still a work in progress. Routing is incomplete, and it has not been fabricated or tested yet. There is no estimated timeline for availability. Use revision 1 unless you have hardware experience and want to try this untested version.
